JAGUAR 990-940
Forage Harvester
CLAAS JAGUAR 900 forage harvesters, the heartbeat of your harvest.
With 925 hp controlled intelligently, throughput of up to 380 t/h and fuel consumption as low as 0.41 L/t1, the new CLAAS JAGUAR 990 is the powerful beating heart of every harvesting chain.
World market leader
The JAGUAR impresses with its outstanding efficiency.
From the front attachment to the crop discharge, the JAGUAR is designed to deliver top performance while saving fuel. The straight-line JAGUAR crop flow allows you to achieve maximum throughput while requiring minimal power.
The transverse engine, whose output is matched precisely to the work systems, drives the chopping mechanism by means of a maintenance-free powerband.

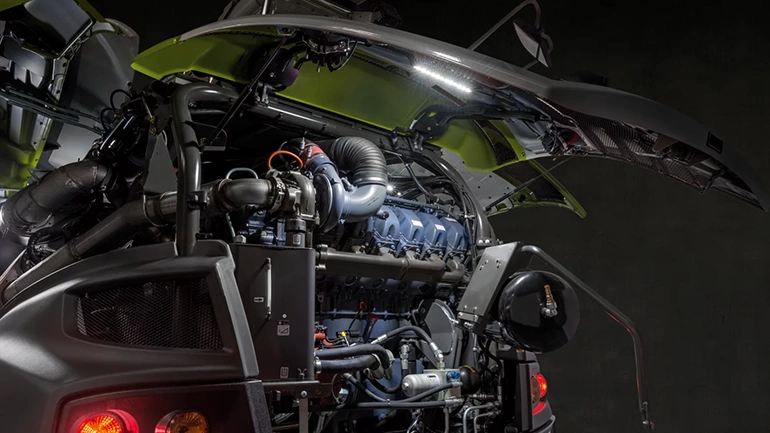

Up to 925hp to get the job done
JAGUAR 990, 980 and 970 models are equipped with the MAN D2862 V12 engine which impresses with its extremely high torque. The 960 and 950 models use the OM 473 LA 15.60 L engine from Mercedes-Benz, with 940 model using an OM 460 LA 12.82 L Mercedes-Benz engine. These power units deliver extremely consistent torque in their performance class. All the engines are notable for their excellent reliability, high efficiency and economical fuel consumption.
Maximum Throughput
With the straight-line JAGUAR crop flow, the crop runs through the entire machine without any awkward angles. This allows you to achieve maximum throughput (t/h) while requiring minimal power (l/t). What's more, you benefit from its extremely reliable operation.
- COMFORT CUT infinitely variable chop length adjustment - V-MAX chopping cylinder for unrivalled chopping quality and automatic cut length
Comfort and Convenience
You will find that you can operate the JAGUAR intuitively in next to no time. Only a few central controls, which are laid out logically and arranged for maximum convenience, are required to operate the key functions. At the heart of this concept is the new CEBIS with a touchscreen.
- NEW CEBIS Touch: the control hub - clear, user-friendly control system
- Ergonomically designed cab delivers high standard of driver comfort
- Simple, intuitive operation
Specifications
| 990 | 980 | 970 | 960 | 950 | 940 | |
|---|---|---|---|---|---|---|
|
Engine
|
||||||
|
Engine
|
MAN | MAN | MAN | Mercedes-Benz | Mercedes-Benz | Mercedes-Benz |
|
Type
|
||||||
|
Type
|
D2862 | D2862 | D2868 | OM 473 LA | OM 473 LA | OM 460 LA |
|
Cylinders
|
||||||
|
Cylinders
|
V12 | V12 | V12 | R6 | R6 | R6 |
|
Displacement (L)
|
||||||
|
Displacement (L)
|
24.24 | 24.24 | 24.24 | 15.60 | 15.60 | 12.82 |
|
Max. Engine Output (ECE R 120) (kW/hp)
|
||||||
|
Max. Engine Output (ECE R 120) (kW/hp)
|
680/925 | 626/850 | 588/800 | 480/653 | 400/544 | 360/490 |
