AXION 960-930 TERRA TRAC

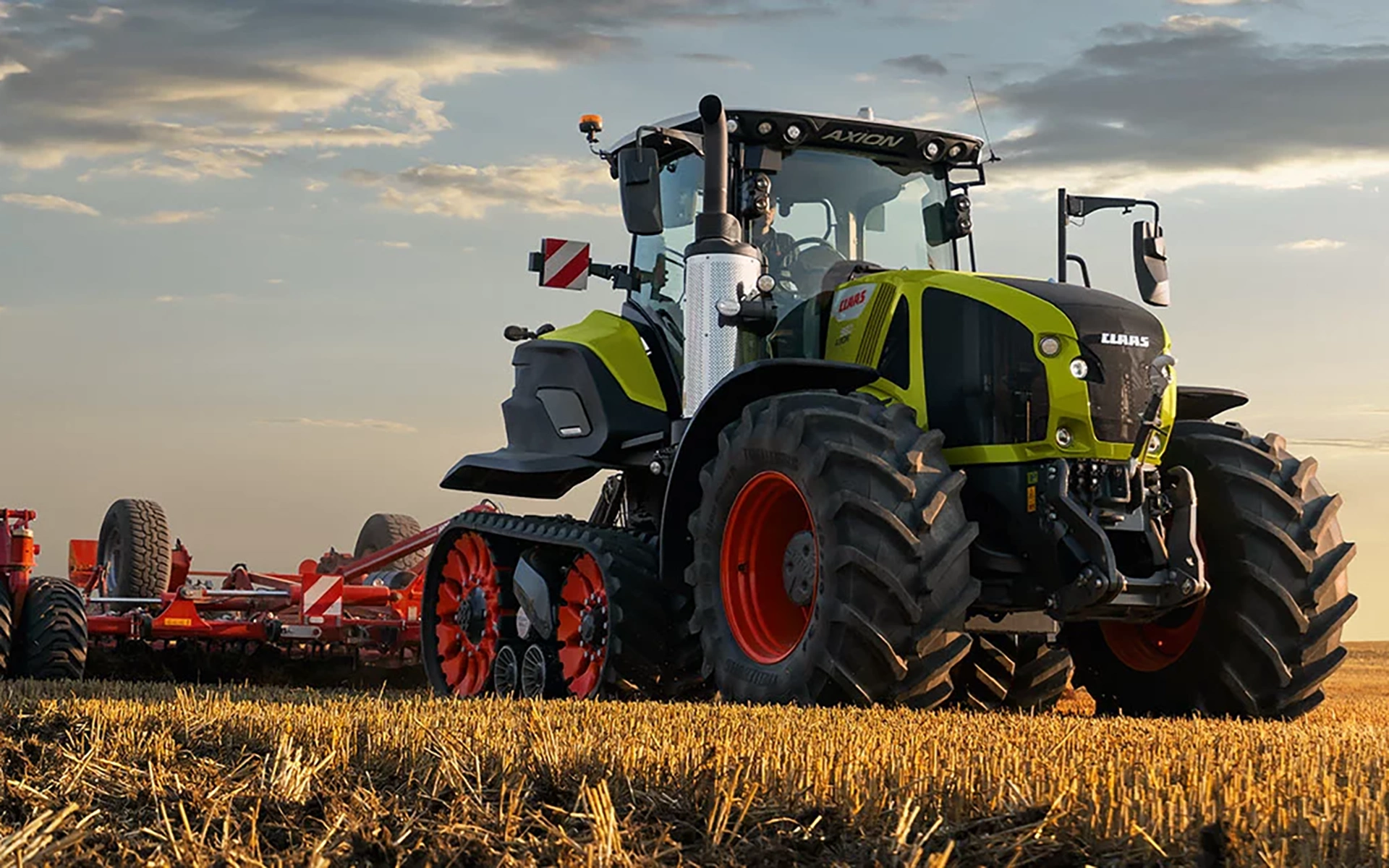

CLAAS AXION terra trac tractor, pictured working a field.
CLAAS Logo - Manufacturers of Tractors and Agricultural Equipment  and Machinery

AXION 960-930 TERRA TRAC

355 hp to 445 hp

AXION 900 TERRA TRAC - the first half-track tractor with full suspension.

The all-new CLAAS AXION 900 TERRA TRAC series tractors are the next generation in tractor technology. Providing more traction for increased pulling power, reduced soil compaction to safeguard future harvests, and the world's only fully suspended TERRA TRAC crawler track assembly and 4-point cab suspension that delivers a new standard of driver comfort. As a new solution for modern, efficient agriculture, the AXION 900 TERRA TRAC was awarded a silver medal at Agritechnica 2017.

AXIOn TT vidoe thumbnail.jpg
AXION TT Terra Trac system.jpg

TERRA TRAC Technology

The AXION 900 TERRA TRAC drives like a conventional four-wheel tractor and has front-axle steering. This allows drivers to operate the machine intuitively without having to acclimatise, and to take full advantage of all the benefits of the half-track concept.

> TERRA TRAC TECHNOLOGY

Axion TT footprint.jpg (1)

Reduced Soil Compaction

Low ground pressure safeguards future harvests. The footprint of the crawler track assembly depends on the width of the track. If the front tyre contact area is included, it can be up to 4 m². This is 1 m² or 35% larger than a standard tractor.

> TERRA TRAC TECHNOLOGY

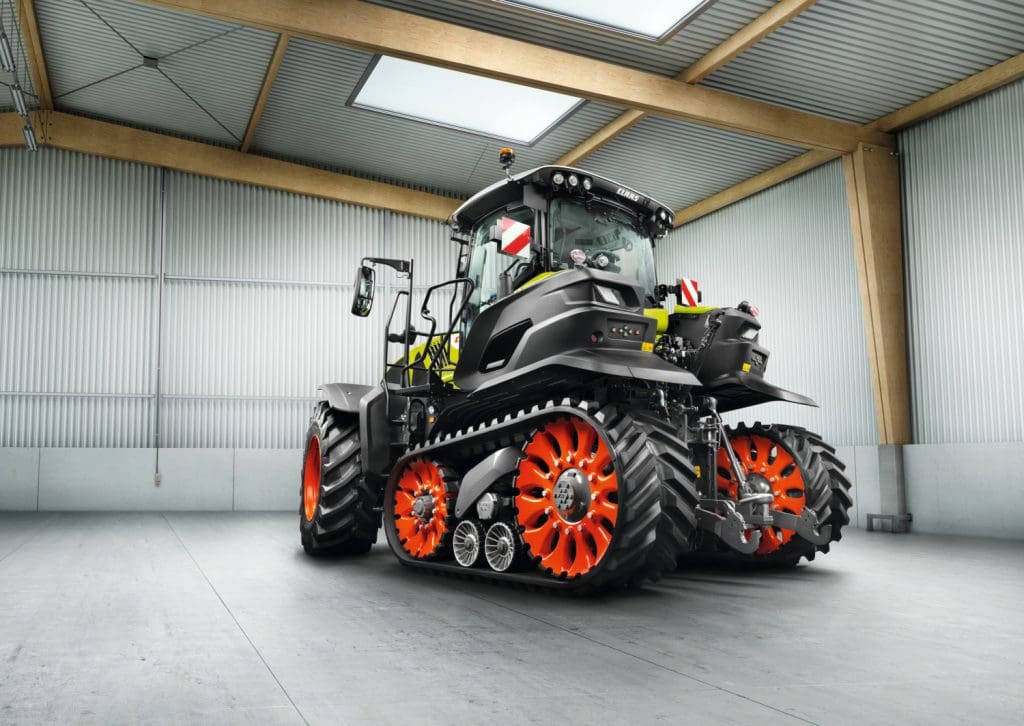

Axion TT _studio.jpg

A New Standard of Comfort

The world's first full suspended half-track tractor.

The smart suspension system with a 120 mm travel provides a high level of driving comfort while keeping mechanical loads to a minimum. Idler wheels and support rollers with independent suspension enable ground speeds of up to 40 km/h and noticeably enhance cornering stability. Combined with 4-point cab suspension as standard and PROACTIV front suspension (960TT only), the all-new AXION 900 TERRA TRAC sets a new benchmark in operator comfort.

AXION 900TT CVT.jpg

Efficient in all speed ranges

CMATIC continuously variable transmission delivers powerful acceleration, smooth deceleration, and fast response to changes in load: CMATIC powertrain management shows its capabilities in all conditions and for every task. Stay relaxed and focused throughout the working day so you can concentrate on more important things – CMATIC does the rest for you.

Specifications


960TT 930TT
Engine
Engine
FPT FPT
Number of Cylinders
Number of Cylinders
6/TI 6/TI
Cubic Capacity (cm3)
Cubic Capacity (cm3)
8710 8710
Max. output (ECE R 120)1 (kW/hp)
Max. output (ECE R 120)1 (kW/hp)
327/445 261/355
Max. Torque (Nm)
Max. Torque (Nm)
1860 1695
Max. Fuel Tank Capacity (l)
Max. Fuel Tank Capacity (l)
860 860
Hydraulic Load-Sensing Circuit Standard (option) (l/min)
Hydraulic Load-Sensing Circuit Standard (option) (l/min)
150(220) 150(220)

Meets ISO TR 14396

Calculate your repayments

Use our handy tool to estimate repayments.

Loan Amount $
Loan Length/Period years
Interest Rate %
Repayment
Monthly Repayments
Total Interest
Total Repayment
Bruce Rankin

Branch Manager

Bruce Rankin

027 809 8384

bruce.rankin@claashc.com

Vaughn Carson

Sales Manager

Vaughn Carson

027 223 3365

vaughn.carson@claashc.com

Glenn Davidson

Sales Representative

Glenn Davidson

027 223 3363

glenn.davidson@claashc.com

Here are some other products you might be interested in...

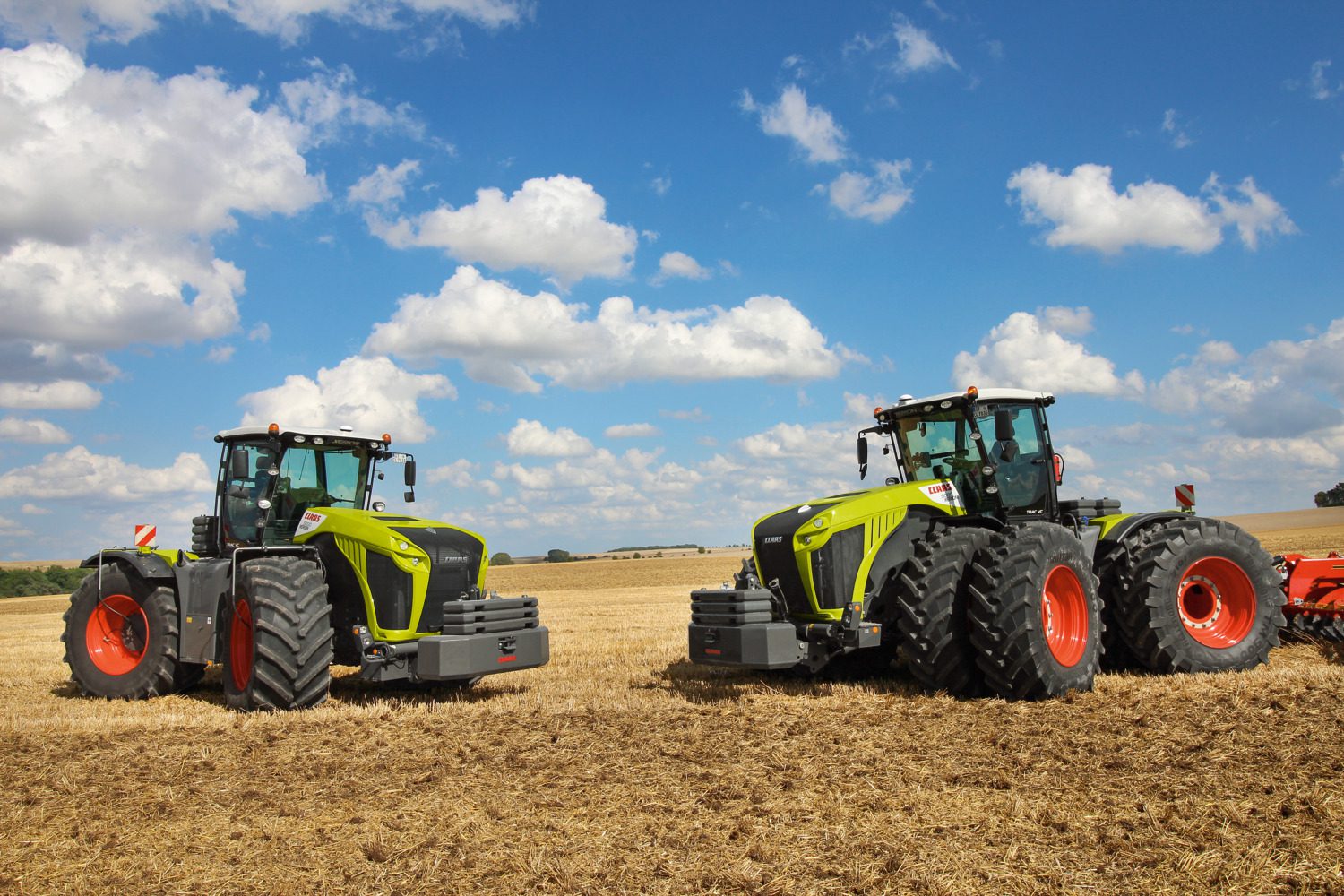

A thumbnail picture of CLAAS XERION high horsepower tractor

XERION 5000-4000

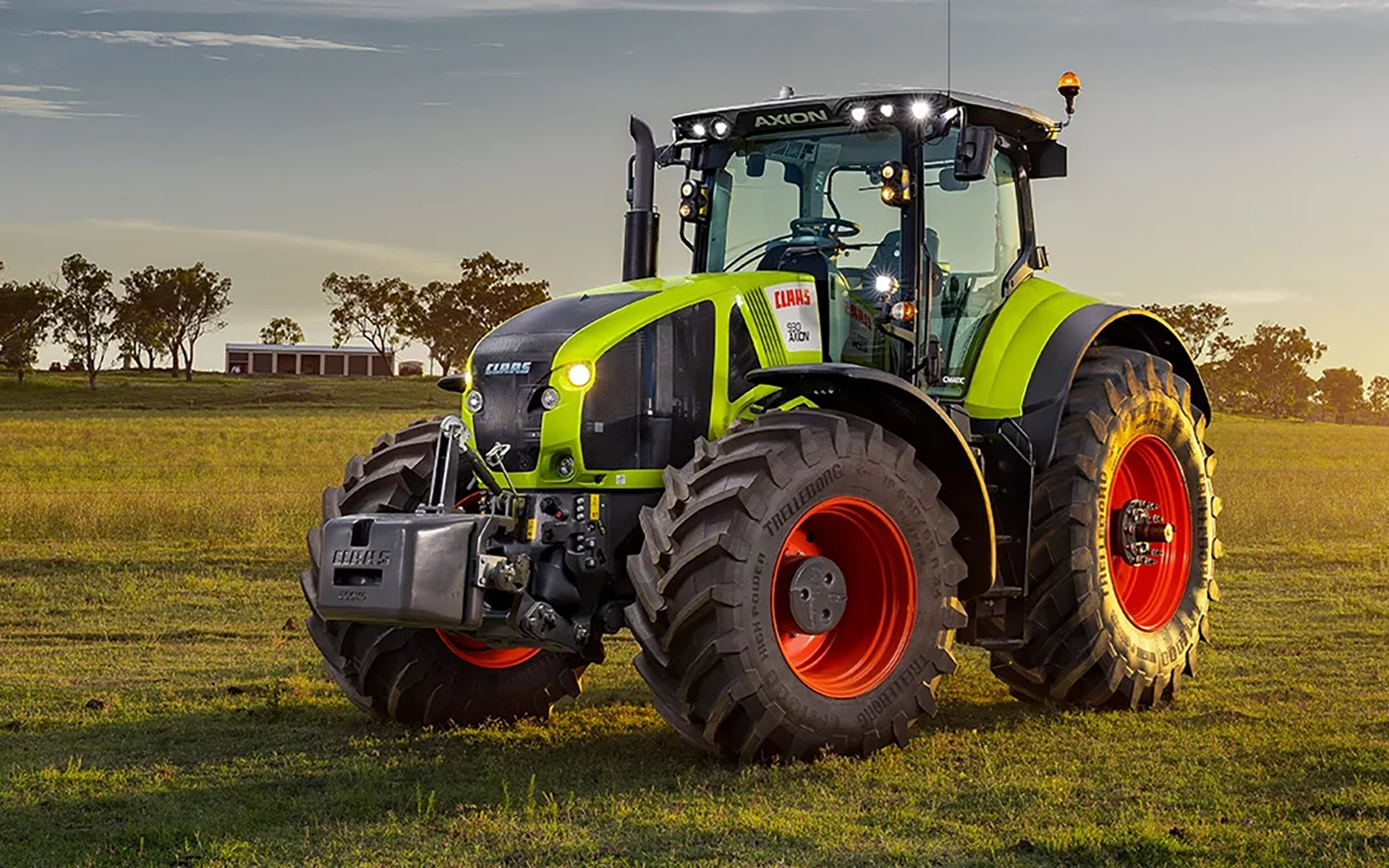

Thumbnail picture of CLAAS AXION 950-920 series large tractor

AXION 950-920

320 hp to 410 hp

A high-horsepower tractor. Massive pulling power combined with maximum user-friendliness. A tractor delivering unrivalled versatility and performance.

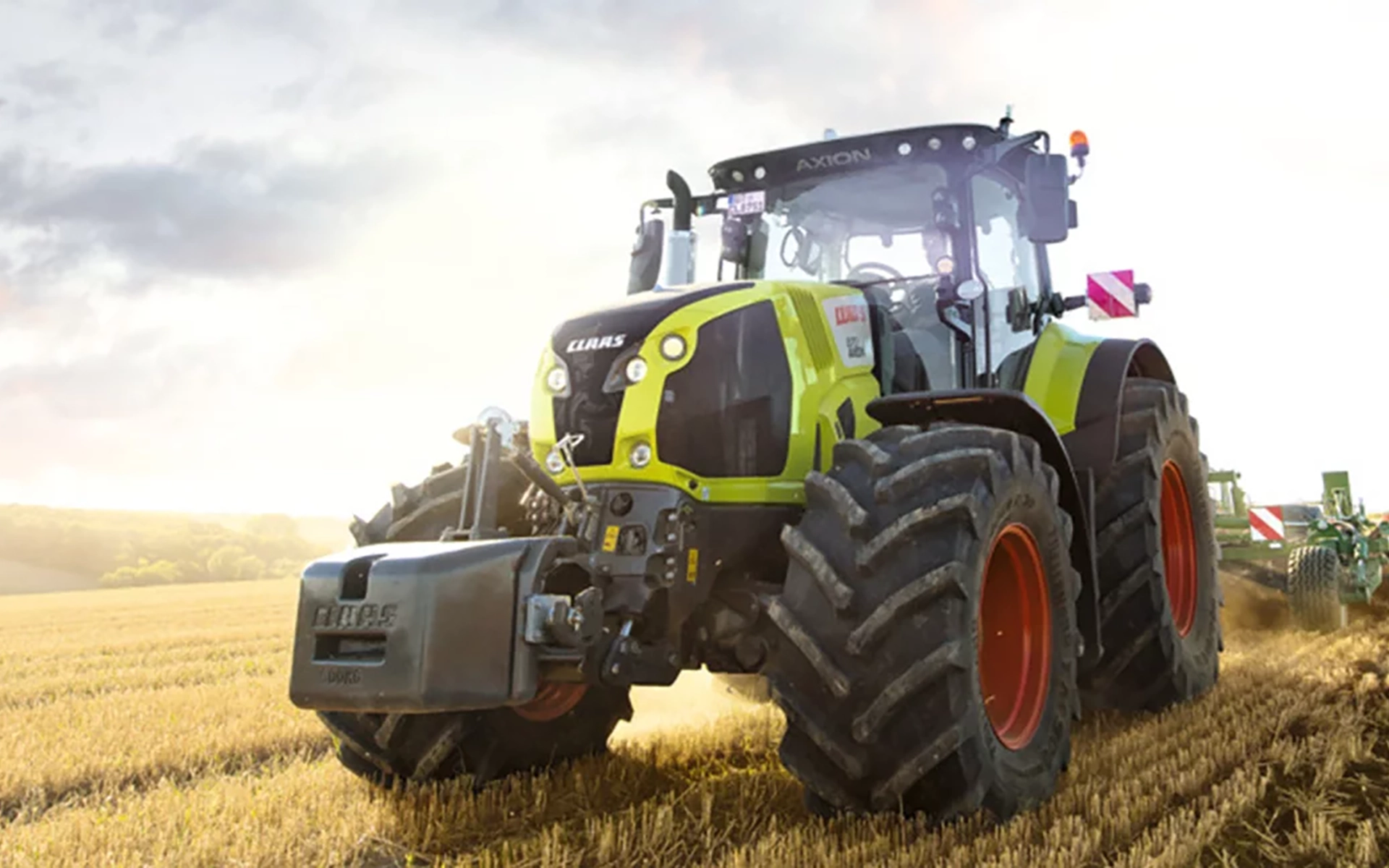

Thumbnail image of the most comfortable tractor, the CLAAS Axion 850
